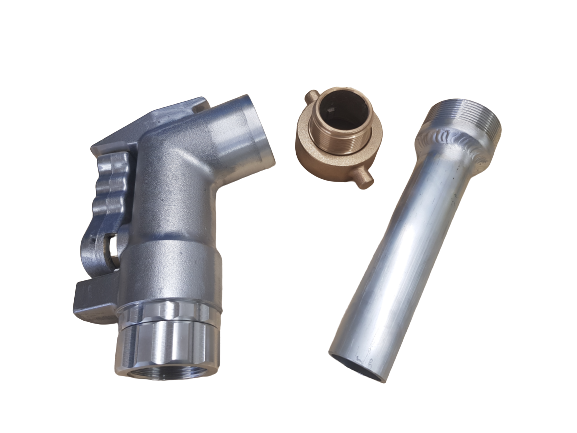

1 1/2" INLET SWIVEL X 2" FEMALE OUTLET C/W 8" SPOUT / TYPE: Locking - Fuel Oil Delivery Nozzles (with Anti Drain Valves) / Type: Locking / Kit 3

Product Group: Delivery Nozzles C/W Anti-Drain Valve
Name: KIT 3 - Delivery Nozzle
Inlet Size: 1 1/2"
Outlet Size: 2"
Product Code: GCA295T
Standard: BSP thread to BS 2779:1956
Application: Fuel oil delivery nozzle with anti drain valve delivered boxed with spare kit. For use with delivery of Kerosene and Gas oil at ambient temperature. Flow rate in region of 400 L.P.M at 5 bar
Comments: 1.625 O/D spout in alloy. Tested after assmbly and numbered for traceability
Inlet Type: Swivel
Outlet Type: Swivel Female
Thread 1: BSP
Dimensions Conformity: To any relevant standard
Sight Glass: No
Locking: Yes
Working Pressure: Relevant to Aluminium LM4TF - EN AB 45200. Relevant to Gunmetal BS 1400 LG 2
Temperature Range: Relevant to Aluminium LM4TF - EN AB 45200. Relevant to Gunmetal BS 1400 LG 2
Weight: 3.20 Kg
